Bobcat S770 Skid-Steer Loader
Bobcat S770 Skid-Steer Loader
Bobcat S770 Skid-Steer Loader Information

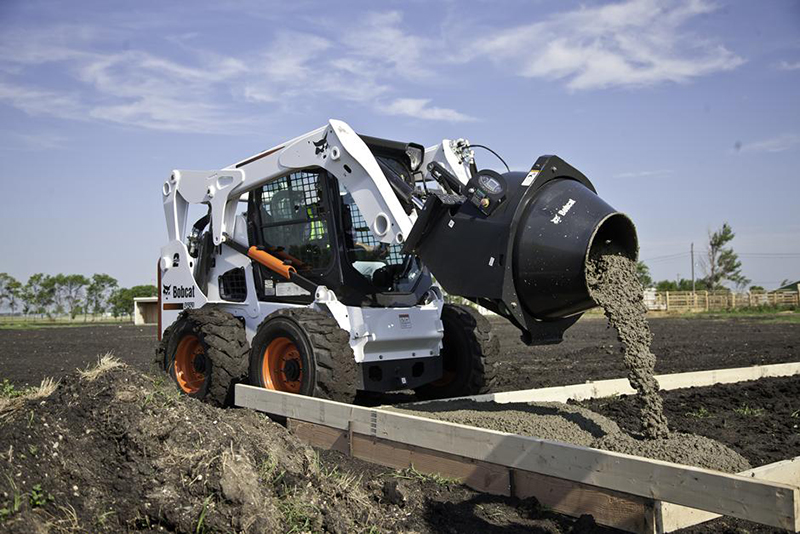

The Bobcat® S770 skid-steer loader is ready for tough digging, loading, pushing, grading and other assignments. A Tier 4 model, the S770’s vertical lift path gives more reach at full lift height without any decrease in performance.
Engine
| EMISSIONS TIER (EPA) | Tier 4 |
| ENGINE COOLING | liquid |
| ENGINE FUEL | diesel |
| HORSEPOWER | 92 hp |
| TURBOCHARGED ENGINE | optional |
Performance
| RATED OPERATING CAPACITY (SAE) | 3,350 lb |
| TIPPING LOAD | 6700 lb |
| OPERATING WEIGHT | 9314 lb |
| TRAVEL SPEED | 7.1 mph |
| TRAVEL SPEED (2-SPEED OPTION) | 12.3 mph |
| TRAVEL SPEED - HIGH | 7.1 mph |
Capacities
| FUEL TANK | 23.9 gal |
Hydraulic System
| SYSTEM RELIEF @ QUICK COUPLERS | 3,500 psi |
| AUXILIARY STD FLOW | 23 gal/min |
| AUXILIARY HIGH FLOW | 36.6 gal/min |
Dimensions
| LENGTH | 141.6 in |
| LENGTH WITHOUT ATTACHMENT | 114.3 in |
| LENGTH WITH STANDARD BUCKET | 141.6 in |
| WIDTH | 72.1 in |
| WIDTH (WITH BUCKET) | 74 in |
| HEIGHT | 81.3 in |
| HEIGHT WITH OPERATOR CAB | 81.3 in |
| HEIGHT TO BUCKET HINGE PIN | 132 in |
| REACH @ MAXIMUM HEIGHT | 31.5 in |
| TURNING RADIUS | 85.8 in |
| WHEELBASE | 48.3 in |
List of Features
| JOYSTICK CONTROL | optional |
| AIR CONDITIONING | Optional |
| ADJUSTABLE SEAT | standard |
| BACKUP ALARM | standard |
| BICS SYSTEM (INTERLOCK) | standard |
| CAB ENCLOSURE | optional |
| SOUND OPTION | optional |
| CAB HEATER | optional |
| OPERATING LIGHTS | standard |
| REAR WINDOW | standard |
| TOP WINDOW | standard |
| LIFT ARM SUPPORT | standard |
| SEAT BELT | standard |
| SUSPENSION SEAT | Standard |
| TWO SPEED TRAVEL | optional |
| DELUXE INSTRUMENTATION | optional |
| ENGINE SHUTDOWN | standard |
| HYDRAULIC BUCKET POSITIONING | optional |
| HIGH FLOW OPTION | optional |
| AUXILIARY HYDRAULICS | standard |
| SPARK ARRESTOR MUFFLER | standard |
| BOB-TACH ATTACHMENT SYSTEM | standard |
| POWER BOB-TACH | optional |
| ACS (SWITCHABLE CONTROLS) | optional |
| RIDE CONTROL | optional |
| REAR HYDRAULICS | optional |
| HORN | standard |
*New price, if shown, is Suggested List Price (SLP). Current national programs are subtracted. SLP and/or final actual sales price will vary depending on options or accessories selected.
REQUEST A QUOTE
| Manufacturer | Bobcat |
| Category | Skid-Steer Loaders |
| Model | S770 |
| Condition | New |
| Year | 2021 |
| Horsepower | 92 hp |
