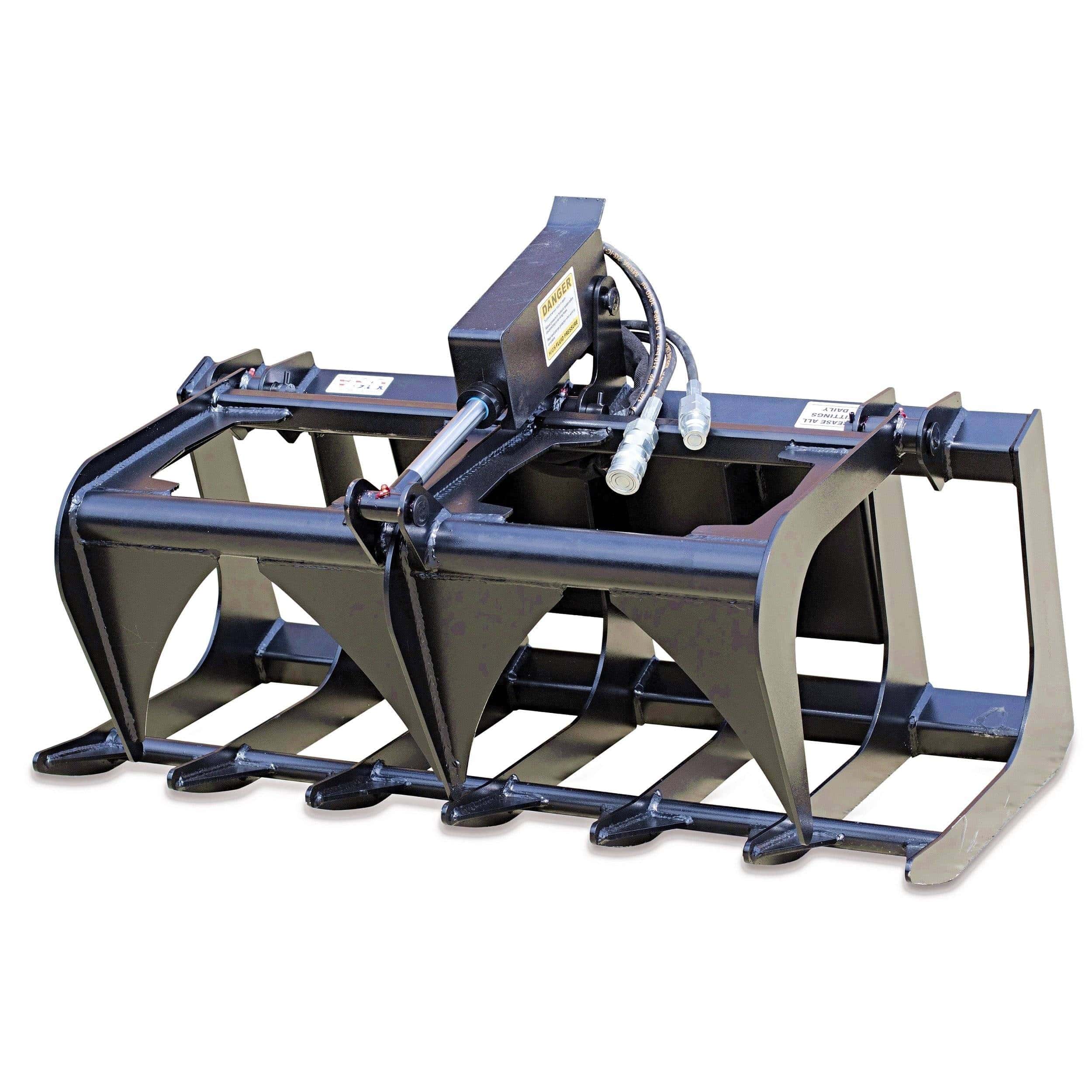

Root Grapple
Built to be the biggest, baddest biter of them all, to rip into tough jobs with ease. Heavy-duty design provides extreme durability, especially when operating on tough jobsites. Ideal for land clearing, landscaping, demolition, construction, rental or buildings and grounds maintenance. Tear it up, bite it off, and spit it out with the root grapple.
Compatible With:
Loaders
Key Specifications
Operating Weight 1025 lb
Length 42.8 in
Width 72.5 in
Height 34.2 in
Number of Fork Teeth (Factory) 9
Number of Fork Teeth (Possible) 9
Grapple Width 72.5 in
Number of Grapple Tines 2
Open Height 52.3 in
Closed Height 34.4 in
Closed Length 42.8 in
Key Features
Curved Skeletal Tooth Design A curved, skeletal tooth design allows dirt to fall on site while materials are picked up without driving the teeth into the ground.
Fully Enclosed Mounting Frame The fully enclosed mounting frame extends wear life by minimizing flexing in the frame.
Inertia-Welded Cylinder Ends As a Bobcat® exclusive design, the inertia-welded cylinder ends deliver strong, smooth operation by improving hydraulic cushioning at the end of the stroke.
Dual Cylinders (Large Grapples Only) The tough, dual cylinders provide the ability to secure uneven loads. Bobcat grapples provide the highest clamping forces in the industry.
